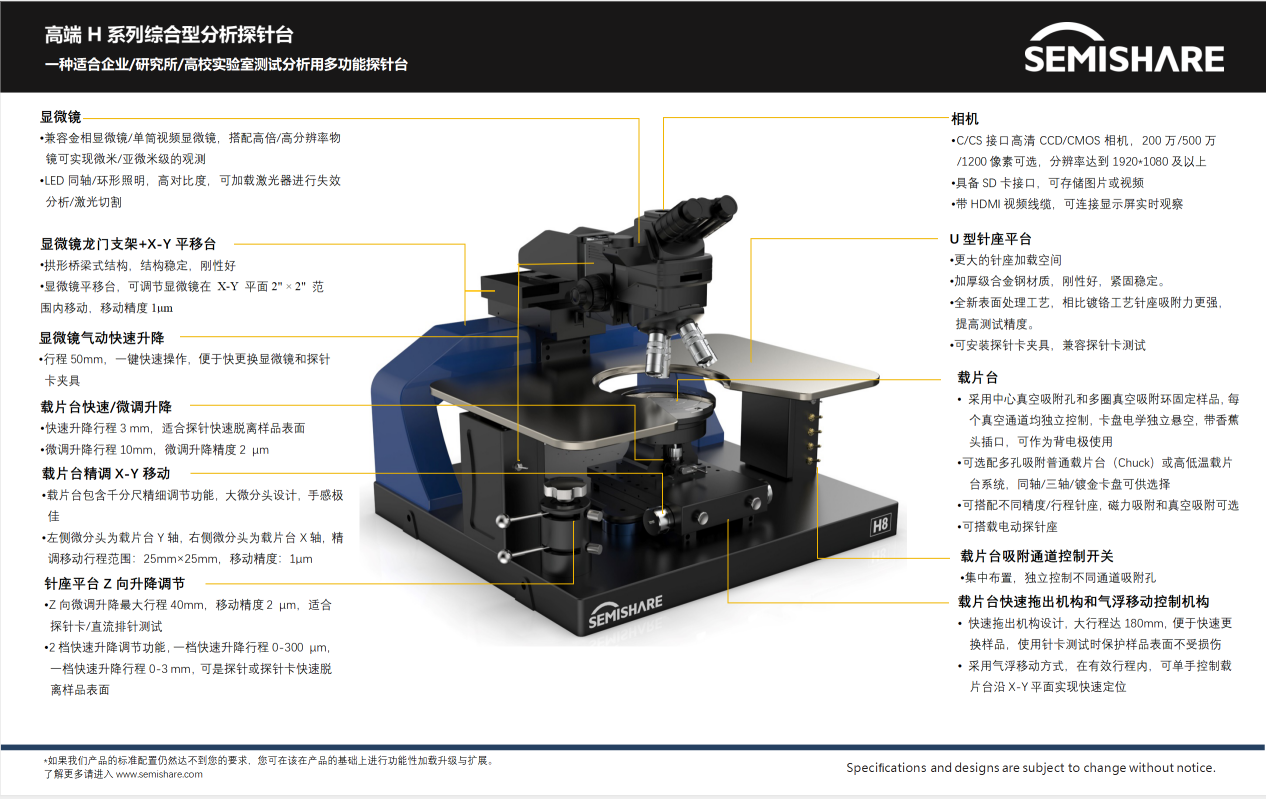

Model SH series
|
|
Specification
|
|
|
|
Style
|
SH-6
|
SH-8
|
SH-12
|
|
Dimension
|
L: 820mm*
W: 720mm*
H: 890mm
|
L: 960mm*
W: 850mm*
H: 900mm
|
L: 1300mm*
W: 920mm*
H: 920mm
|
|
Weight (about)
|
170KG
|
230KG
|
300KG
|
|
Electricity Demand
|
220VC, 50~60Hz
|
|
Chuck
|
Size & Rotation angle
|
6", 360° Rotation
|
8", 360° Rotation
|
12", 360° Rotation
|
|
X-Y Travel range
|
6" * 6"
|
8" * 8"
|
12" * 12"
|
|
Moving resolution
|
1μm
|
|
Sample fixed mode
|
Vacuum adsorption
|
|
Electrical design
|
Electrical Floating with Banana plug adapter, can be used as a backside electrode
|
|
Platen
|
U shape platen
|
6 micropositioners available
|
8 micropositioners available
|
12 micropositioners available
|
|
Move range & adjustment mode
|
Platen can be quickly lifted up and down 6mm for fast probe tip seperation
|
|
Platen can be fine tuned up and down 25mm precisely with 1μm resolution
|
|
Microscope
|
Travel range
|
X-Y axis : 2" * 2", Z axis : 50.8mm
|
|
Moving resolution
|
1μm
|
|
Switching object lens
|
Microscope tilting 30°manually by Lever
|
|
Magnification
|
20~4000X
|
|
Lens specification
|
Eyepiece: 10X ; Objective lens : 5X, 10X, 20X, 50X 、100X（option）
|
|
CCD pixels
|
50W (Analog) / 200W (Digital) / 500W (Digital)
|
|
Micropositioner specification
|
X-Y-Z Travel range
|
12mm-12mm-12mm / 8mm-8mm-8mm
|
|
Mechanical resolution
|
10μm / 2μm / 0.7μm / 0.1μm
|
|
Current leakage accuracy
|
10pA / 100fA (with Shielding Box）
|
|
Cable connectors
|
Banana head / Crocodile clip / Coaxial / Triaxial
|
|
Application
|
Wafer test, Photoelectric device test, PCB / IC test, RF test, high voltage and high
current measurement etc.
|
|
Optional Accessories
|
Chuck quick roll out mechanism
|
|
Microscope tilt mechanism (Tilting 30° manually by Lever )
|
|
Microscope pneumatic lifting mechanism
|
|
Laser repair with cutting,ablation and welding function
|
|
Probe clamp
|
|
Dark field of microscope / DIC / Normarski test, Light intensity / wavelength test
|
|
IC hotspot detection by LC
|
|
High voltage and high current measurement
|
|
Hot chuck
|
|
High/Low temprature chuck
|
|
Shielding box
|
|
Special adapter
|
|
Vibration free table
|
|
Gold-plated chuck
|
|
Coaxial / Triaxial chuck
|
|
Chuck quick move-out and fine adjustment mechanism
|
|
Chuck rotation fine adjustment
|
|
Light intensity / wavelength testing
|
|
RF Testing
|
|
Active probe
|
|
Low current / Capacitance test
|
|
Intergartion of intergral sphere
|
|
Fixture for Fibre optic coupler test
|
|
Fixture of Package IC test
|
|
Fixture of PCB test
|
|
Special Custom design
|
|
Characteristics
|
Stable structure, Platen can be quick lifted and fine-tuned, Suitable
for probe card installation and usage
|
Comfortable large handle, Driver Screws: Zero back lash
|
|
Compatible with high magnification metallographic microscope
|
Internal circuit/ electrode/ PAD probe
|
|
Suitable in University and Research laboratory
|
LD/LED/PD Light intensity / wavelength testing
|
|
Up to 12 inch wafer testing
|
IV/CV Characteristic testing of materials / devices
|
|
High precision lead screw drive structure, linear movement
|
High frequency characteristic test of devices
(up to 300GHz frequency)
|
